Description

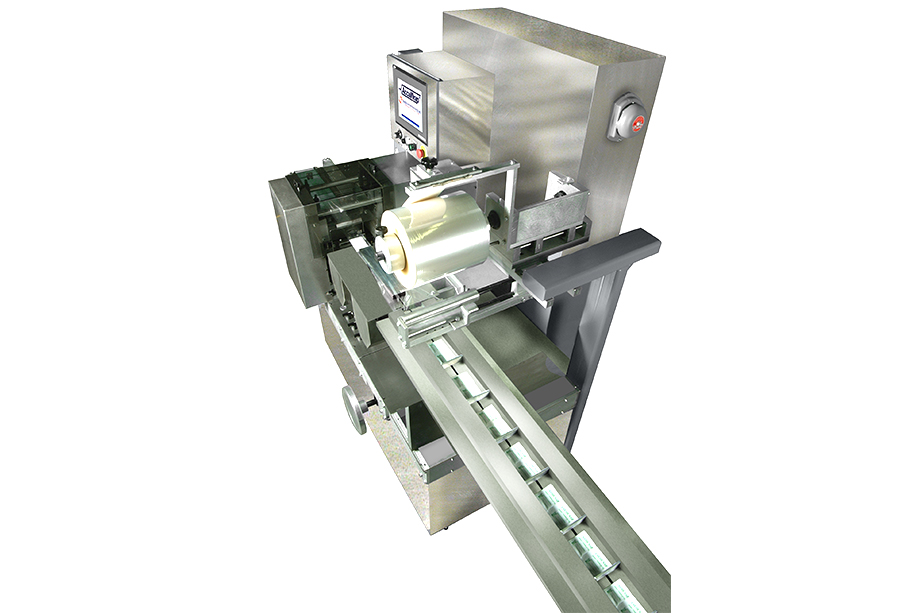

The BA-2000H hard film wrapper is designed for high-speed, high-efficiency, general packaging applications. As with all GGA Packaging AccuWrap™ systems, the BA-2000H provides the very best of electronic features to give you control of both your production and maintenance. As you can see from the long list of product features and options, the BA-2000H can be tailored to solve your unique packaging challenge. And, because it is designed and built using our Building Block Modularity™, the BA-2000H can be adapted to future packaging challenges, without requiring an investment in new equipment.

Used for various packaging applications, the BA-2000H will accommodate hi/lo polyethylene film, polypropylene, and many laminates from 0.65 mil up to 2 mil. The powered unwind option allows the use of thin, delicate film, keeping film tension at a minimum while providing reliable operation. The film width may be up to 12 inches depending on the item being wrapped; a 24-inch width model is also available.

GGA’s modular conveyor incorporates a carrier chain and the center lug pushers carry each product into the film tube. The modular construction allows easy movement and the ability to change the conveyor style for different applications. Each fin wheel has an individual servo drive and motor allowing programmable film draw for precision tension and tracking control. The tension on the film between the two fin wheels is adjustable with a simple setting on the control panel. The crimper head and knife settings are made with built-in adjustments without shims and while hot.

The simple machine design and rugged, modular construction keeps the ownership cost low, ensuring fast payback. The Model BA-2000H provides a low-cost, compact size, and flexible system, ideal for applications across the packaging industry.

Building-Block Modularity™

The BA-2000H AccuWrap™ Wipe Down Wrapper is designed and build utilizing GGA Packaging's Building-Block Modularity, which is the basic modular design philosophy of our packaging systems. It provides you with a machine that has value, both now and in the future.

Exclusive Features

• • Precision packaging with multi-axis
     servo control
• • Easy operation with touch screen &
     diagnostics
• • Save time with networking
     connectivity
• • Aid maintenance with on screen PM
     flag and monitor
• • No crunch waste with positioning
     surveillance option
• • High throughput with two-direction
     registration correction
• • Optimum package with individual
     & fin wheel crimp servos
• • Precision film tracking with a servo
     for each fin wheel
• • Save troubleshooting with electronic
     line supervision
• • Fast change time with over 100
     recipes with touch screen
     retrieval
• • Easy maintenance with modular
     snap-in fin wheels
• • Increase change-over options with
     modular conveyor
• • Easy access with hinged pole-mount
     electrical cabinet
• • High serviceability with modular
     construction

Additional Features

• • Servo follows conveyor for start/stop
     operation
• • Overhead film unwind system
• • Speeds up to 400 per minute
• • Precision forming box for easy web
     setup/control
• • Adjustable pressure setting for
     fin wheels
• • Precision head for crimping and
     cutting
• • UL approval
• • 12-inch web width (24 inch on
     BA-2000HW)
• • Adjustable gap setting for crimpers
• • Shim-less head and knife
     adjustments
• • Double E-stop; one on panel and one
     on remote operator station

Options

• • CE mark
• • Electronic positioning surveillance
• • Web tracking with edge detection
• • Single or double unwind
• • Single or double powered unwind
     (for thin, delicate films)
• • 1, 2 or 4 up servo crimper head
• • Straight cut or zigzag knife/crimp
• • Four choices of fin seal
• • in-line or cross crimp pattern
• • 4-1/2 or 6 inch crimp width
• • in-line, cross, or crosshatch
     seal pattern
• • modular lug conveyor
• • total conveyor length
• • with or without line shaft
• • variable flight spacing
• • food-grade materials touching
     product
• • Eye-mark registration
• • Electronic position surveillance
• • Auto splice
• • Adjustable former; 3 to 7 inches
• • Servo belt infeed
• • QC system

Technical Data

• • Electrical: 230 VAC, three-phase,
     50/60 Hz
• • Current: Approximately 40 Amps
• • Compressed Air: 1 cfm @ 80 PSIG
• • Production: Up to 400 cycles
     per minute
• • Package Size: 1” to 5” in width by
     2” to 20” in length
• • Web Width: Up to 12”; standard
